Constant Tension Clamps
Murray Corporation precision-engineered specialty clamps for various applications. OEM quantities are available directly from Murray.

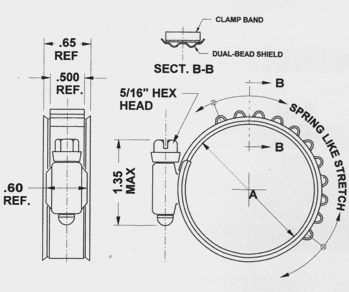

Constant Tension Turbo Seal Clamps - With a convoluted heat-treated band that provides spring-like tensioning effects for thermal cycling hose applications.
Murray’s unique “DUAL BEAD SHIELD” concentrates band-sealing pressure, increasing performance up to 30% compared to standard smooth liners. Flanged edges protect soft hose compounds from abrasion and wear.
For smaller quantities go to Top Performance Parts
(the online store for Murray) at: www.topperformanceparts.com
Click HERE to Download Specifications (PDF)
To View Specifications in HTML + Expand
| Turbo Seal Size Chart | ||||||
| Part Number | "A" Diameter Range | |||||
| “300” Series Stainless Screws |
Decimals | Inches | Millimeters | |||
| Min. | Max. | Min. | Max. | Min. | Max. | |
| TSS 14S30 | 1.12 | 1.50 | 1-1/8 | 1-1/2 | 28 | 38 |
| TSS 16S30 |
1.20 | 1.63 | 1-1/5 | 1-5/8 | 30 | 41 |
| *TSS 18S30 |
1.28 | 1.75 | 1-1/4 | 1-3/4 | 33 | 44 |
| TSS 20S30 | 1.37 | 1.88 | 1-3/8 | 1-7/8 | 35 | 48 |
| *TSS 24S30 |
1.56 | 2.13 | 1-9/16 | 2-1/8 | 40 | 54 |
| TSS 28S30 | 1.63 | 2.38 | 1-5/8 | 2-3/8 | 41 | 60 |
| TSS 32S30 | 1.80 | 2.63 | 1-13/16 | 2-5/8 | 46 | 67 |
| TSS 36S30 |
1.97 | 2.88 | 1-31/32 | 2-7/8 | 50 | 73 |
| TSS 40S30 |
2.25 | 3.13 | 2-1/4 | 3-1/8 | 57 | 79 |
| TSS 44S30 | 2.50 | 3.38 | 2-1/2 | 3-3/8 | 64 | 86 |
| TSS 48S30 | 2.75 | 3.63 | 2-3/4 | 3-5/8 | 70 | 92 |
| *TSS 52S30 |
3.00 | 3.88 | 3 | 3-7/8 | 76 | 98 |
| *TSS 56S30 | 3.25 | 4.13 | 3-1/4 | 4-1/8 | 83 | 105 |
| *TSS 60S30 |
3.50 | 4.38 | 3-1/2 | 4-3/8 | 89 | 111 |
| TSS 64S30 |
3.75 | 4.63 | 3-3/4 | 4-5/8 | 95 | 118 |
| *TSS 68S30 | 4.00 | 4.88 | 4 | 4-7/8 | 102 | 124 |
| *TSS 72S30 |
4.25 | 5.13 | 4-1/4 | 5-1/8 | 108 | 130 |
| *TSS 76S30 | 4.50 | 5.38 | 4-1/2 | 5-3/8 | 114 | 137 |
| *TSS 80S30 | 4.75 | 5.63 | 4-3/4 | 5-5/8 | 121 | 143 |
| *TSS 84S30 | 5.00 | 5.88 | 5 | 5-7/8 | 127 | 149 |
| *TSS 88S30 |
5.25 | 6.13 | 5-1/4 | 6-1/8 | 133 | 156 |
| *TSS 92S30 |
5.50 | 6.38 | 5-1/2 | 6-3/8 | 140 | 162 |
| *TSS 96S30 | 5.75 | 6.63 | 5-3/4 | 6-5/8 | 146 | 168 |
| *TSS 104S30 |
6.25 | 7.13 | 6-1/4 | 7-1/8 | 159 | 181 |
| *TSS 112S30 |
6.75 | 7.63 | 6-3/4 | 7-5/8 | 172 | 194 |
| *TSS 116S30 | 7.00 | 7.88 | 7 | 7-7/8 | 178 | 200 |
| *TSS 120S30 |
7.25 | 8.13 | 7-1/4 | 8-1/8 | 184 | 206 |
Sizes not stocked, special order only.
Other sizes available upon request. Available in packed and bulk stock. Other packaging configurations available.

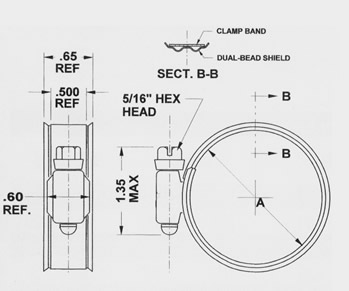

Dual Bead Super Sealing Clamp - For air to air and coolant applications. The inner shield provides superb sealing characteristics and is safe for all soft hoses. It can also be found in the marine, agriculture, construction and off-highway markets.
For smaller quantities go to Top Performance Parts
(the online store for Murray) at: www.topperformanceparts.com
Click HERE to Download Specifications (PDF)
To View Specifications in HTML + Expand
| Part Number | "A" Diameter Range | ||||||||
| Double Plated Screws |
"400" Series Stainless Screws |
All "300" Series Stainless |
All "316" Series Stainless |
Decimals | Inches | Millimeters | |||
| Min. | Max. | Min. | Max. | Min. | Max. | ||||
| DB 16 | DB 16SS | DB 16SS305 | DB 16SS316 | 0.63 | 1.38 | 5/8 | 1-3/8 | 15.9 | 34.9 |
| DB 20 | DB 20SS | DB 20SS305 | DB 20SS316 | 0.69 | 1.63 | 11/16 | 1-5/8 | 17.5 | 41.4 |
| DB 24 |
DB 24SS | DB 24SS305 | DB 24SS316 | 0.94 | 1.88 | 15/16 | 1-7/8 | 23.8 | 47.6 |
| DB 28 |
DB 28SS | DB 28SS305 | DB 28SS316 | 1.19 | 2.13 | 1-3/16 | 2-1/8 | 30.2 | 54.0 |
| DB 32 | DB 32SS | DB 32SS305 | DB 32SS316 | 1.44 | 2.38 | 1-7/16 | 2-3/8 | 36.5 | 60.3 |
| DB 36 | DB 36SS | DB 36SS305 | DB 36SS316 | 1.69 | 2.63 | 1-11/16 | 2-5/8 | 42.9 | 66.7 |
| DB 40 | DB 40SS | DB 40SS305 | DB 40SS316 | 1.94 | 2.88 | 1-15/16 | 2-7/8 | 49.2 | 73.0 |
| DB 44 | DB 44SS | DB 44SS305 | DB 44SS316 | 2.19 | 3.13 | 2-3/16 | 3-1/8 | 55.6 | 79.4 |
| DB 48 | DB 48SS | DB 48SS305 | DB 48SS316 | 2.44 | 3.38 | 2-7/16 | 3-3/8 | 61.9 | 85.7 |
| DB 52 | DB 52SS | DB 52SS305 | DB 52SS316 | 2.69 | 3.63 | 2-11/16 | 3-5/8 | 68.3 | 92.1 |
| DB 56 |
DB 56SS | DB 56SS305 | DB 56SS316 | 2.94 | 3.88 | 2-15/16 | 3-7/8 | 74.6 | 98.4 |
| DB 60 | DB 60SS | DB 60SS305 | DB 60SS316 | 3.19 | 4.13 | 3-3/16 | 4-1/8 | 81.0 | 104.8 |
| DB 64 | DB 64SS | DB 64SS305 | DB 64SS316 | 3.44 | 4.38 | 3-7/16 | 4-3/8 | 87.3 | 111.1 |
| DB 72 | DB 72SS | DB 72SS305 | DB 72SS316 | 3.94 | 4.88 | 3-15/16 | 4-7/8 | 100.0 | 123.8 |
| DB 80* | DB 80SS | DB 80SS305 | DB 80SS316 | 4.44 | 5.38 | 4-7/16 | 5-3/8 | 112.7 | 136.5 |
| DB 88* | DB 88SS | DB 88SS305 | DB 88SS316 | 4.94 | 5.88 | 4-15/16 | 5-7/8 | 125.4 | 149.2 |
| DB 96 | DB 96SS | DB 96SS305 | DB 96SS316 | 5.44 | 6.38 | 5-7/16 | 6-3/8 | 138.1 | 161.9 |
| DB 104 | DB 104SS | DB 104SS305 | DB 104SS316 | 5.94 | 6.88 | 5-15/16 | 6-7/8 | 150.8 | 174.7 |
| DB 116 | DB 116SS | DB 116SS305 | DB 116SS316 | 6.38 | 7.63 | 6-3/8 | 7-5/8 | 161.9 | 193.7 |
Other sizes available upon request. Available in packed and bulk stock. Other packaging configurations available.
*items not stocked. special order only

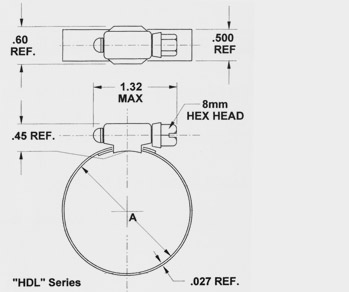

HDL High Torque Series Clamps - All 316 series stainless steel clamp designed for plumbing applications. 1/2" inch wide band is thicker than standard worm drive clamp. This construction yields superior performance and longevity in corrosive environments. Applications include plumbing, water well, municipal storm drain systems, irrigation, marine and transportation.
Click HERE to Download Specifications (PDF)
To View Specifications in HTML + Expand
| "A" Diameter Range | |||||||
| SAE Size | Part Number | Decimals | Inches | Millimeters | |||
| 6 | HDL 6SS | .44 | .78 | 7/16 | 25/32 | 11 | 20 |
| 8 | HDL 8SS | .44 | .91 | 7/16 | 29/32 | 11 | 23 |
| 10 | HDL 10SS | .56 | 1.06 | 9/16 | 1/1/16 | 14 | 27 |
| 12 | HDL 12SS | .69 | 1.25 | 11/16 | 1-1/4 | 18 | 32 |
| 16 | HDL 16SS | .75 | 1.50 | 3/4 | 1-1/2 | 19 | 38 |
| 20 | HDL 20SS | .81 | 1.75 | 13/16 | 1-3/4 | 21 | 44 |
| 24 | HDL 24SS | 1.06 | 2.00 | 1-1/16 | 2 | 27 | 51 |
| 28 | HDL 28SS | 1.31 | 2.25 | 1-5/16 | 2-1/4 | 33 | 57 |
| 32 | HDL 32SS | 1.56 | 2.50 | 1-9/16 | 2-1/2 | 40 | 64 |
| 36 | HDL 36SS | 1.81 | 2.75 | 1-13/16 | 2-3/4 | 46 | 70 |
| 40 | HDL 40SS | 2.06 | 3.00 | 2-1/16 | 3 | 52 | 76 |
| 44 | HDL 44SS | 2.31 | 3.25 | 2-5/16 | 3-1/4 | 59 | 83 |
| 48 | HDL 48SS | 2.56 | 3.50 | 2-9/16 | 3-1/2 | 65 | 89 |
| 52 | HDL 52SS | 2.81 | 3.75 | 2-13/16 | 3-3/4 | 71 | 95 |
| 56 | HDL 56SS | 3.06 | 4.00 | 3-1/16 | 4 | 78 | 102 |
| 60 | HDL 60SS | 3.31 | 4.25 | 3-5/16 | 4-1/4 | 84 | 108 |
| 64 | HDL 64SS | 3.56 | 4.50 | 3-9/16 | 4-1/2 | 90 | 114 |
| 72 | HDL 72SS | 4.06 | 5.00 | 4-1/16 | 5 | 103 | 127 |
| 80 | HDL 80SS | 4.56 | 5.50 | 4-9/16 | 5-1/2 | 116 | 140 |
| 88 | HDL 88SS | 5.06 | 6.00 | 5-1/16 | 6 | 129 | 152 |
| 96 | HDL 96SS | 5.56 | 6.50 | 5-9/16 | 6-1/2 | 141 | 165 |
| 104 | HDL 104SS | 6.06 | 7.00 | 6-1/16 | 7 | 154 | 178 |
| 116 | HDL 116SS | 6.50 | 7.75 | 6-1/2 | 7-3/4 | 165 | 197 |
HDL clamp sizes are available on special order only. Ask your Murray representative for price and availabity.
